RS

Outdoor Totem
Enclosure
KEY FEATURES
OPTIONS
RESOURCES

ENHANCE OUTDOOR DISPLAY PROTECTION WITH RD OUTDOOR TOTEM ENCLOSURE

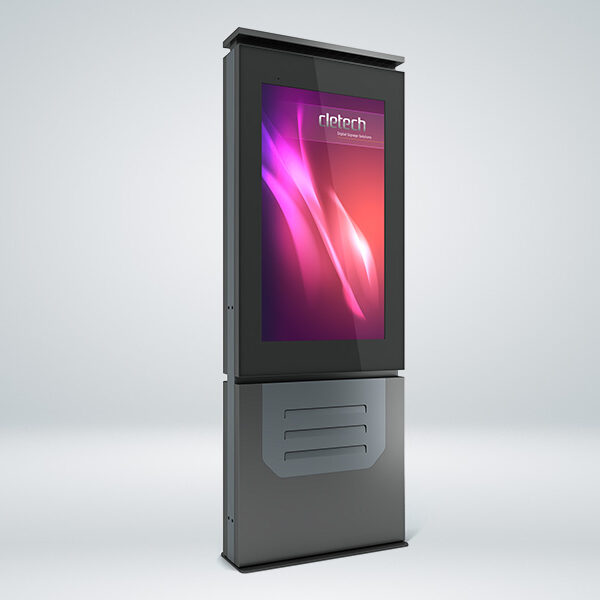

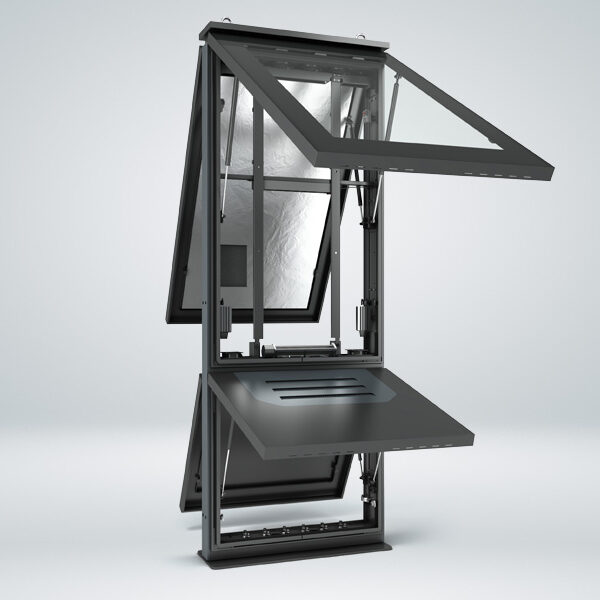

Cletech RS Outdoor Totem Cabinet is a protective solution designed specifically for high brightness monitors. This single-sided product features piston-driven, 10mm thick glass doors with dual-point locking. In addition to the doors, it also includes a suspension system capable of lifting the monitor upwards. Engineered to withstand all adverse weather conditions, its main frame is constructed from aluminum and steel materials.

All metal surfaces are coated with zinc-based primer and then painted with polyester-based electrostatic powder paint, achieving an A2 fire resistance rating. With an IP56 protection class, this product is equipped with intake and exhaust fans, as well as curtain fans to ventilate the space between the screen and the glass.

KEY FEATURES

  • Tangetial Fan for Air Curtain

  • Easy Access for Maintenance

  • 10mm Ceramic Painted Tempered Glass

  • Available for Floor Mounts

  • Easy Monitor-TV Mounting

  • Aluminum & Steel Main Chasis

OPTIONS

Included
Optional
On Project
Not Available
null
Custom
Color
null
Floor
Mounts
null
Base Feets
null
Touch
Screen
null
PDU 6 x Socket
null
Client
Logo
null
Base Wheels
null
TemperedGlass
null
Fans for Ventilation
null
Lockable
Cover

RESOURCES

Monitor Enclosure Package
Display (inch) Mountable Max. Monitor Dimension (mm) Dimension without Flange (mm) Dimension with Flange (mm) Weight (kg) Viewing Area (mm) Dimension (mm) Weight (kg)
46" 615x1060x55 810x2400x212 810x300 228 573x1018 2520x930x400 290
49" 645x1115x55 840x2400x212 840x300 235 604x1074 2520x960x400 300
55" 720x1250x55 915x2500x212 915x300 262 680x1210 2620x1040x400 335
65" 845x1470x100 1040x2650x300 1040x400 310 804x1428 2730x1160x500 385
75" 970x1690x100 1165x2800x300 1165x400 335 928x1650 2900x1290x500 415

* Multiple product package sizes may differ from the information written above. Please get information when you order.

TitleDescriptionSizeDate addedDownload
RS Outdoor Totem Enclosure 8.23 MB13-02-2024 Download

Black

Light Grey

Dark Grey
